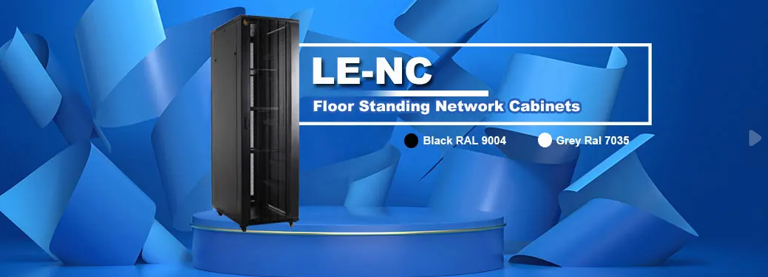

SPCC 42U Black Server Rack Network Cabinet With Vented Front Door 19
General Description
- Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree
- Vented rear door with hexagonal holes
- Removable side panels with latch,easy to install, optional lock
- Adjustable cable entry on the top and bottom
- Welded steel frame for front and back part, flat packing is available,easy to transfer
- Optional plinth to fix cabinet on floor;under base cable entry
- Unassembled packing,about 2/5 of original volume,save container space
| S/N | LE-NC |
| Standard | Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 800kg (on the adjustable feet) |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 18U-47U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm |
01: Top Cover
02: Fan Unit
03: Mounting Profile
04: Spacer
05: Mounting Angle
06: Rear Door With Hexagonal Holes
07: High-density Vented Rear Door
08: Steel Rear Door Without Hole
09: Bottom Panel
10: Heavy Duty Castor
11: Frame
12: Side Panel
13: Cable Management Slot
14: Tempered Glass Front Door
15: Arc Vented Front Door
16: 05J Border Glass Front Door
17: Single Vented Front Door
18: Steel Front Door
09: Bottom Panel
10: Heavy Duty Castor
11: Frame
12: Side Panel
13: Cable Management Slot
14: Tempered Glass Front Door
15: Arc Vented Front Door
16: 05J Border Glass Front Door
17: Single Vented Front Door
18: Steel Front Door
Our Advantages 1. 100% Manufacturer.
2. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
3. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. On time delivery rate more than 95%.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
