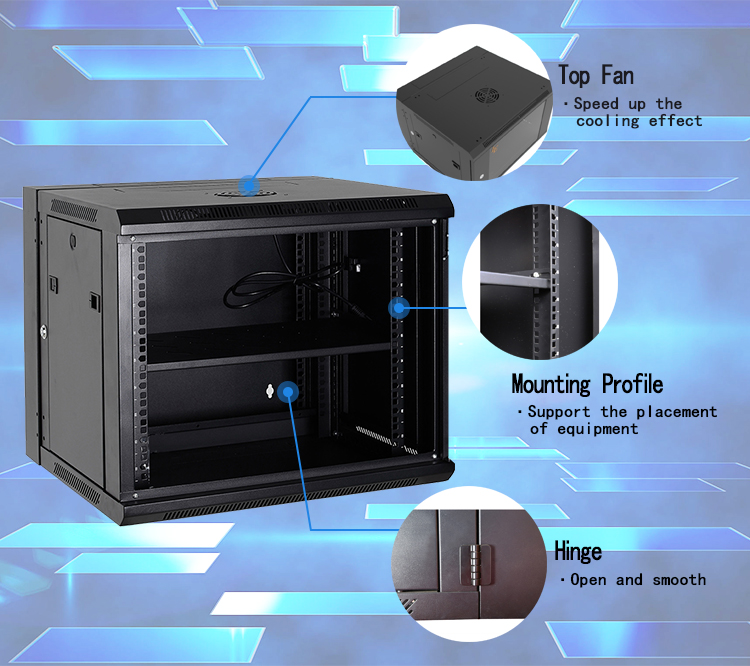

19 Inch SPCC Quality Wall Mount Server Cabinet Network Rack
Features:
Welded frame,double section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional,second section can open ,easy to install equipments;
Cable entry on the top and bottom,the same as second section;
L-shaped mounting profile,easy to adjustable on the mounting rail;
Fan cutout on the top,easy to install fan;
Second section with four mounting holes ,easy to fix on the wall;
Various accessories for option;
| S/N | LE-WD1 |
| Standard | Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel;
Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-27U
Width: 600mm
Depth: 550mm, 600mm |
 | Main Structure 1. Cable entry plate 2. Back box (swing) 3. Frame 4. Side panel 5. Mounting profile (L-shaped) 6. Steel front door 7. Tempered glass front door 8. Tempered glass front door with vented border 9. Tempered glass front door with meshed border |
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
