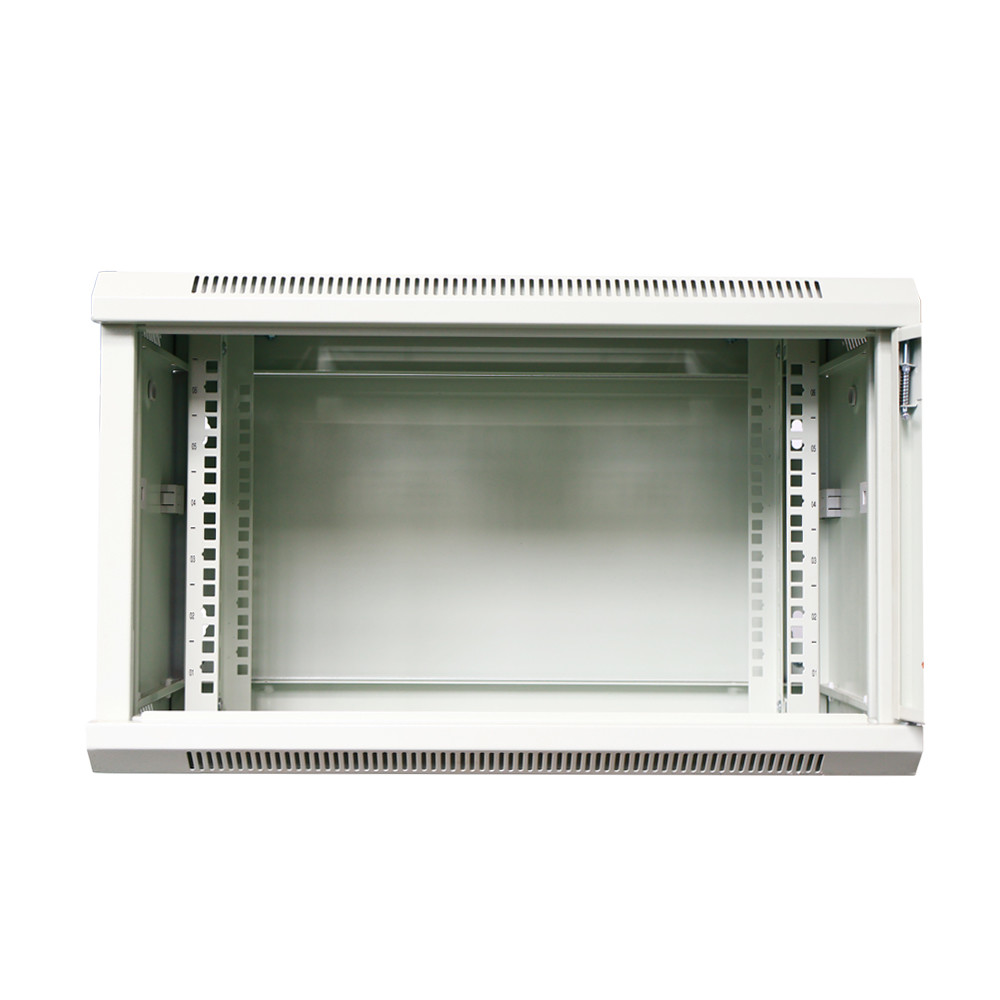

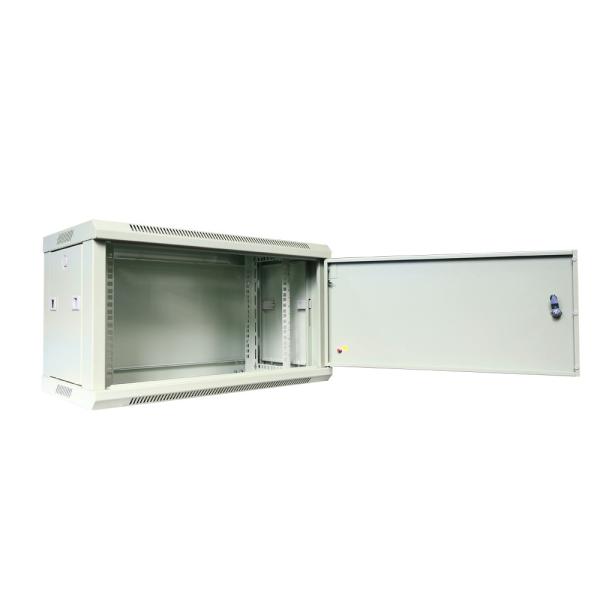

OEM IP20 19 Inch Wall Mounted Server Network Rack
Features:
Steel frame with assistant profile unassembled structure;
Single section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional;
Cable entry on the top and bottom;
L-shaped mounting profile,easy to adjustable on the mounting rail;
Fan cutout on the top,easy to install fan;
Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option;
Flat packing,save the container space,easy to transport;
| S/N | LE-WS3 |
| Standard | Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel: Thickness:1.2mm;
Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-18U
Width: 600mm
Depth: 450mm, 600mm |
 | Main Structure 1. Installing Backboard 2. Horizontal mounting angle 3. Mounting profile (L-shaped) 4. Front frame 5. Cable entry plate 6. Top 7. Side panel 8. Tempered glass front door 9. Bottom |
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
